Plastic LAN RJ 45 Connector

Product Categories

Shenzhen GLGNET Electronics Co., LTD

Contact Now

Plastic LAN RJ 45 Connector

Name: Plastic LAN RJ 45 Connector
Brand: GLGNET
Price: 1 USD

Buy cheap Plastic LAN RJ 45 Connector product

Brand Name : GLGNET

Model Number : JLFU1U402(W) LAN RJ45

Certification : ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20KK ports /month

Delivery Time : 10 work day

Packaging Details : Tray, Tube, Reel, Carton

Housing Color : White

Shielding Shell : No Shielding Shell

LED Option : Can be Customized as required

Magnetic : 10 / 100 Base - T

Port Number : One Port Tab Down

Contact Finish plating : 6 u " / 15 u " / 30 u " / 50 u " Gold Plating

Contact Now

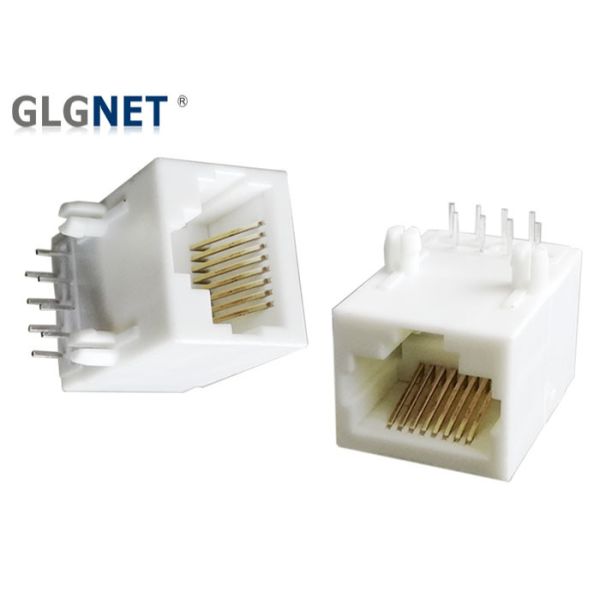

LAN RJ45 Connector White Plastic RJ45 Connector with 10 / 100 Base T Magnetic Single Port

1. GLGNET Advantages:

20 years experiences in Magnetic RJ45 Connectors
1500 Employees
58 R&D Engineers.
22000 square meters Factory
Support Customization ( Structure, Dimensions, LEDs, Lightpipes, EMI Tab, Operating Temp. ETC.)
Competitive price ( Because we are manufacturer, not trading Company )
Our products are compliant with RoHS, REACH and UL certification
Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on;
20KK Prots / Month Capacity
ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

2. LAN RJ45 Connector ( JLFU1U402(W) )Structure:

With 10 / 100 Base - Magnetics;
Latch Down;
6 u " Godling Plating;
Through Hole Mounting Type;
White Color without Shielding Shell
Without EMI Tab,
Without LEDs.

3. LAN RJ45 Connector Materials:

Operating Temperature: 0 ℃ to +70 ℃ or -40 ℃ to 85 ℃ , Storage Temperature : -40 ℃ to +85 ℃
Housing: Class Filled PA46 ( White ) UL94V-0 (ROHS)
Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches At Mating Interface;
Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max

4. LAN RJ45 Connector Features

Broad set of configurations
Supports 10/100Base-T, 1000Base-T, 2.5GBase-T, or 5GBase-T
Supports PoE and PoE+ (10/100Base-T)
Compatible with surface-mount with paste-in-hole (PIH) technology
-40°C to +85°C or 0°C to +70°C operating temperature range
Combinations of green, yellow, orange, and red LEDs
Complies with requirements of IEEE 802.3u standards
RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic
Design for 10 / 100 / 1000 BASE transmission over UTP-5 cable
Comply with RoHS requirements

5. LAN RJ45 Connector Electrical Specification

Parameter	Specification
Brand	GLGNET
Operating Temperature	0℃ to 70 ℃
Turns Ratio	1:1±3%
Open Circuit Inductance (ocl)	350uH MIN@ 100KHz/100mV with 8Ma DC Bias
Insertion Loss (IL)	-1.0dB MAX @ 0.3MHz – 100MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)	-30dB MIN @ 1MHz – 100MHZ
HI - POT	2250 VDC @ 60 Seconds

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

6. LAN RJ45 Connector Product Attributes

Search	YES
Shield EMI Tabs	WITH
Speed	10 / 100 BASE-T
Operating Temperature	0 TO 70 ℃ or -40 TO 85 ℃
Storage Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Applications	10 / 100 Base - T
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	6u", 15u", 30u", 50u" Gold Plating
Cores per Port	8
Diodes	Can be with or without Without DIODES
LED Option	Can be with or Without LED
Shielding	Without Shielding Shell
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Latch	Down
Number of Ports	1 X 1 Single Port
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION

7. LAN RJ45 Connector Applications:

Networking and communications
Broadcast vide
IP cameras, surveillance, and phones
Access points
Network interface cards (NIC)
Industrial process control
Set-top boxes and video
Power over Ethernet (PoE)
Test and measurement
Multifunction printers (MFP)

8. LAN RJ45 Connector Mechnical Drawing

Plastic LAN RJ 45 Connector
