Vertical Rj45 Lan Jack Ethernet Connector RJ45 100Base T Integrated Magnetic

Brand Name : GLGNET

Model Number : JHCU1S435 LAN RJ45

Certification : ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20KK ports /month

Delivery Time : 10 work day

Packaging Details : Tray, Tube, Reel, Carton

Magnetic : 100 Base T

Orientation : Vertical 180 degrees

LED Option : With or without

Mount Type : Though Hole

Port Number : 1 x 1 Single Port

Working Temp : 0 To 70 ℃ or - 40 to 85 ℃

Contact Now

Vertical Rj45 Lan Jack Ethernet Connector RJ45 100Base T Integrated Magnetic

1. LAN RJ45 Connector Materials

Shield: 0.2mm Thickness With Brass
Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃
Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
Housing: Class Filled PA46 ( BALCK) UL94V-0 (ROHS)
RJ CONTACT / PLASTIC : Filled PA46 ( BALCK) UL94V-0 (ROHS)

2. LAN RJ45 Connector Features

Complies with requirements of IEEE 802.3u standards
RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic
Comply with RoHS requirements
-40°C to +85°C or 0°C to +70°C operating temperature range
Combinations of green, yellow, orange, and red LEDs
Design for 10 / 100 / 1000 BASE transmission over UTP-5 cable
Broad set of configurations
Supports 10/100Base-T Transmission Speed

3. Customization Services

Being with or without LED diode,
Being with or without EMT TAB ( EMI Spring , EMI Finger );
Being with or without lightpipes;
Printing LOGO
LED color can be green, yellow, orange, red and so on;
Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
Supports to custom different structure, Tab - up or Tab - Down;
Supports to custom different Pin Length;

4. LAN RJ45 Connector Electrical Specification:

Parameter	Specification
Return Loss (RL) Z out = 100 OHM	-18dB MIN @ 1MHz – 30MHZ; -13dB MIN @ 30MHz – 60MHZ; -10dB MIN @ 60MHz – 100MHZ;
Crosstalk Adjacent Channels	-40dB MIN @ 0.3MHz – 30MHZ -35dB MIN @ 30MHz – 60MHZ -30dB MIN @ 60MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)	-30dB MIN @ 1MHz – 30MHZ -25dB MIN @ 30MHz – 60MHZ -20dB MIN @ 60MHz – 100MHZ
DC current/voltage rating – pse pins	0.1A MAXIMUM @ 48 VDC ( continuous)
HI - POT	2250 VDC @ 60 Seconds

Brand	GLGNET
Operating Temperature	0℃ to 70 ℃
Turns Ratio	1:1±2%
Open Circuit Inductance (ocl)	350uH MIN@ 100KHz/100mV with 8Ma DC Bias
Insertion Loss (IL)	-1.0dB MAX @ 0.3MHz – 100MHZ;

5. LAN RJ45 Connector ( JHCU1S435 ) Attributes:

Brand	GLGNET
Part Number	JHCU1S435
Application-Lan	ETHERNET without POE
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores per Port	6
Diodes	NO DIODES
LED Option	Without LED
Shielding	Shielded, EMI Finger
Mounting Type	Through Hole
Orientation	180° Angle (Veritcal)
Latch	Unavailable
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	Top ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	100 BASE-T
Temperature	0 TO 70 ℃ or -40 to 85 ℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Package Height (Inches)	0.492
Package Height (mm)	12.5
Package Length (Inches)	0.722
Package Length (mm)	18.35
Package Width (Inches)	0.630
Package Width (mm)	16.00

6. LAN RJ45 Connector Applications:

Networking equipment

Servers
Workstations
Motherboards
Hubs
Switches
Routers
PCs

Equipment utilizing a network port

NICs
Servers
PCs
Consumer Devices

7. GLGNET Advantages:

Our products are compliant with RoHS, REACH and UL certification
Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
20KK Prots / Month Capacity
20 years experiences in Magnetic RJ45 Connectors
1500 Employees
58 R&D Engineers.
22000 square meters Factory
ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

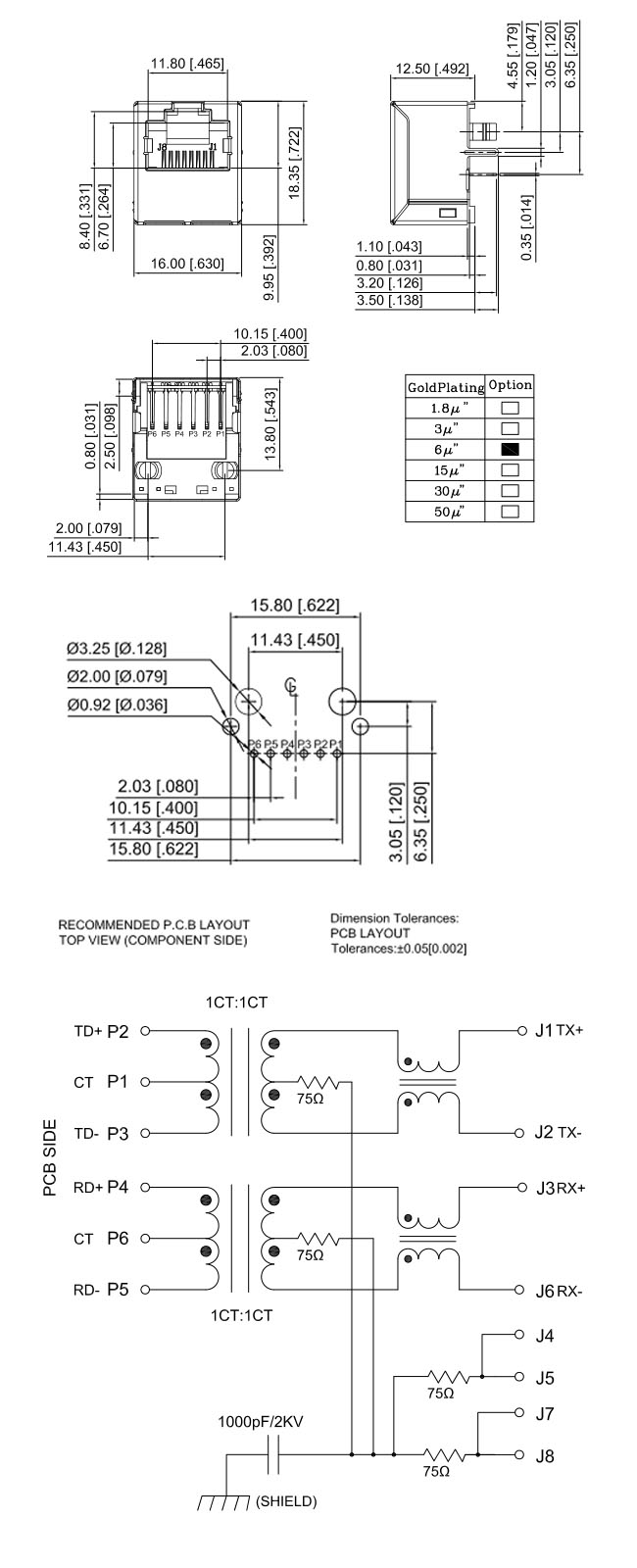

8. LAN RJ45 Connector Mechnical Drawing

Vertical Rj45 Lan Jack Ethernet Connector RJ45 100Base T Integrated Magnetic
